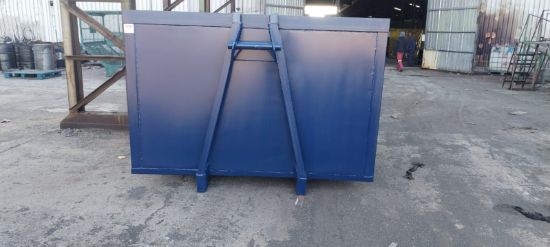

18m³ Roll-on-Roll-off Bin
18m³ Roll-on-Roll-off Bins
18m³ RoRo bin manufactured according to the following specifications (weight approx. 2.2 tons):
· 6000mm length
· 2200mm width
· 1400mm height
· 180 x 70 channel for crawl beam
· 100 x 50 channel upright
· 100 x 50 cross supports on bottom plate with 40 x 40 square tubing floor support
· 127 x 64 with reinforced steel plate lifting front supports
· 4.5mm floor plates and 3mm side plates
· 2 x Reinforced custom-made hinges on each rear door
30m³ RoRo Bin
30m³ RoRo bin manufactured according to the following specifications (weight approx. 3 tons);
· 5675mm length
· 2400mm width
· 2200mm height
· 180 x 70 channel for crawl beam
· 100 x 50 channel upright
· 100 x 50 cross supports on bottom plate with 40 x 40 square tubing floor support
· 127 x 64 with reinforced steel plate lifting front supports
· 4.5mm floor plates & 3mm side plates
· 2 x Reinforced custom made hinges on each rear door
Painted according to clients corporate colours
